Views: 222 Author: Gill Transmission Publish Time: 2026-04-15 Origin: Site
As someone who has spent years designing and troubleshooting outboard gears in real-world marine environments, I've learned that the gear tooth profile is often the quiet hero behind smooth, reliable power on the water. When the tooth geometry is right, engines feel stronger, noise disappears, and failures become rare—even under harsh saltwater conditions. [tiecas]
In this guide, I'll walk you through the fundamentals of gear tooth profiles, explain why they matter so much for outboard engines, and share practical insights based on both industry standards and hands-on experience at Ningbo Gill Transmission Parts Co., LTD.. [parashifttech]
A gear tooth profile is the precise shape of each tooth along the gear's pitch circle, defining how two gears mesh and transmit torque. It determines how smoothly teeth roll into and out of contact, how loads are shared, and how long the gear set will last in real service. [khkgears.co]
In marine outboard applications, the tooth profile directly influences:
- Noise and vibration levels at different RPMs. [khkgears.co]
- Efficiency and fuel consumption of the engine. [khkgears.co]
- Load capacity under sudden acceleration or gear shifting. [khkgears.co]
- Resistance to pitting, scuffing, and tooth breakage. [khkgears.co]
From a UX point of view, your customer simply feels "quiet, powerful, and reliable", but underneath that experience lies an optimized profile and well-controlled manufacturing process. [tiecas]
Designing gear tooth profiles for outboard engines is more demanding than for many industrial applications. The operating environment and duty cycle create a unique combination of stresses: [parashifttech]
- Constant load changes from waves, starting, and stopping. [tiecas]
- High torque in compact housings with limited lubrication volume. [tiecas]
- Saltwater corrosion risk combined with shock loads. [khkgears.co]
If the tooth profile is not properly engineered and manufactured:
- Contact lines become too short, creating edge contact and high local stress.
- Backlash may be inconsistent, leading to clunking noises and poor shifting.
- Surface fatigue accelerates, producing pitting on the flank and early failure. [khkgears.co]
Our team at Ningbo Gill has seen many cases where a minor correction to profile or lead immediately solved chronic noise or durability issues in an outboard lower unit. That is why we treat tooth geometry as a top-level design variable, not a secondary detail. [parashifttech]
Most modern power transmission gears, including those used in outboard engines, adopt the involute tooth profile. In an involute gear, the active tooth surface is generated from an involute curve derived from a base circle, which has several important benefits for marine drives: [khkgears.co]
- Constant velocity ratio even if center distance varies slightly due to mounting tolerances or housing deformation. [khkgears.co]
- Nearly straight-line tooth contact, simplifying cutting and inspection. [khkgears.co]
- Good tolerance to slight misalignment in a real gearbox. [khkgears.co]

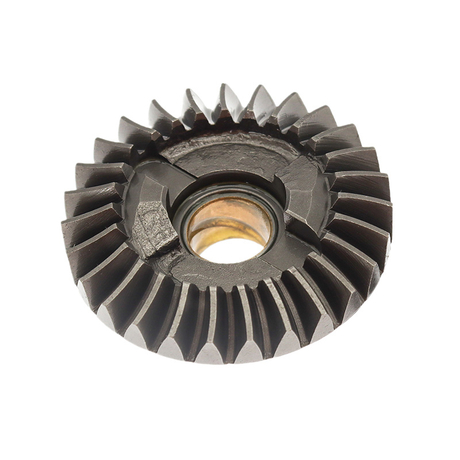

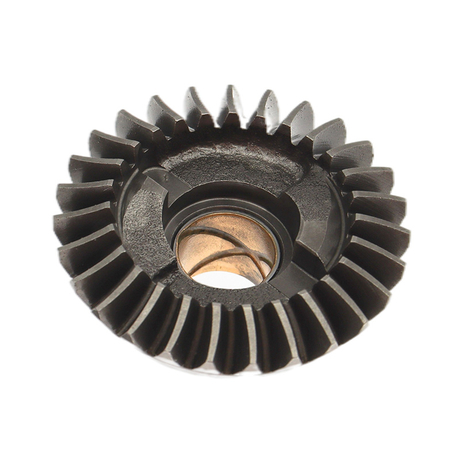

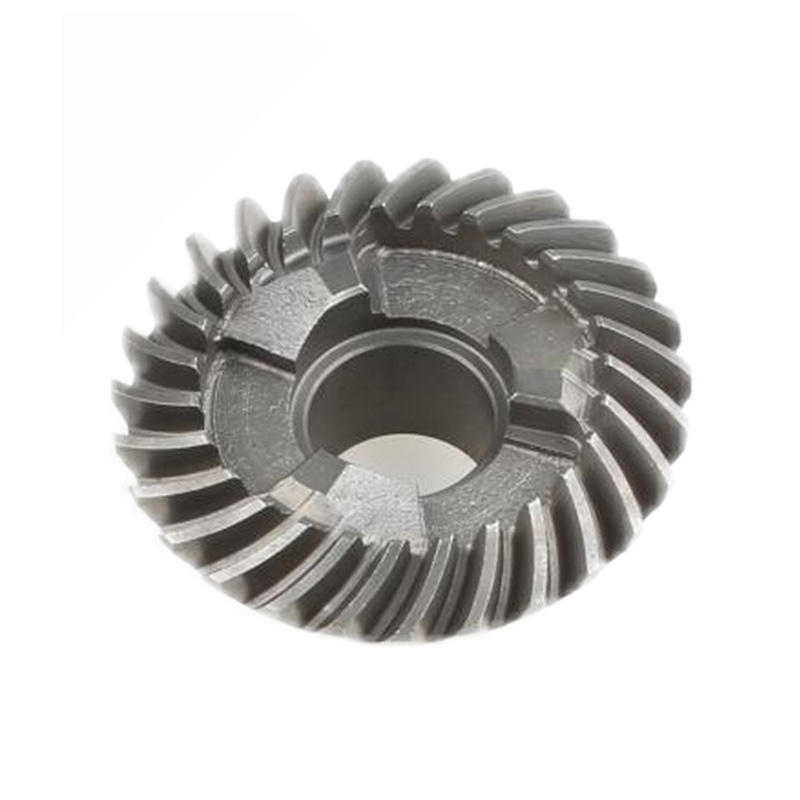

For outboard gear sets, involute profiles help absorb assembly deviations while maintaining smooth meshing between pinion and gear, especially in helical or spiral bevel arrangements commonly used in marine lower units. [tiecas]
When we talk about optimizing gear tooth profiles for outboard gears, we focus on several core geometric parameters. [khkgears.co]
- Pitch circle: The notional circle where gear teeth "roll" together without slipping. [khkgears.co]
- Module (or diametral pitch): Defines tooth size relative to gear diameter and directly affects strength and number of teeth. [khkgears.co]
In marine applications, selecting a slightly larger module can improve tooth root strength for high-torque engines while keeping noise under control through proper profile modification. [tiecas]
The pressure angle is the angle between the line of action (where force is transmitted) and the tangent to the pitch circle. Common standard values are 20° and 25° in power transmission gears. [khkgears.co]
For outboard gears:
- Higher pressure angles generally increase load capacity but also generate higher bearing loads. [khkgears.co]
- Lower pressure angles can improve smoothness and reduce noise, but may limit capacity and increase sensitivity to deflection. [khkgears.co]
Choosing the right pressure angle is a balancing act between strength, noise, and bearing life, and is heavily influenced by real-world test feedback. [parashifttech]
- Addendum: Tooth height above pitch circle.
- Dedendum: Tooth depth below pitch circle.
- Tooth height: Total addendum + dedendum. [khkgears.co]
In marine gearboxes, these dimensions must provide:
- Sufficient root strength and clearance for lubrication films and debris.
- Adequate contact ratio to avoid vibration and tooth skipping. [khkgears.co]
One of the most critical performance metrics for gear tooth profiles is the contact ratio—the average number of tooth pairs simultaneously in contact while the gears rotate. [khkgears.co]
- A contact ratio greater than 1 ensures continuous torque transmission. [khkgears.co]
- Higher contact ratios (e.g., >1.4–1.6) typically reduce noise and distribute load more evenly. [khkgears.co]
For outboard gears, where customers expect quiet operation even at high RPM, we intentionally design tooth profiles to maintain a high effective contact ratio and then verify it on both calculation and test benches. [parashifttech]
In practical engineering, standard involute profiles are often not enough to meet modern marine requirements. We use profile modifications to fine-tune performance: [khkgears.co]
A profile shift adjusts tooth thickness and root depth, allowing us to:
- Avoid undercut in gears with a small number of teeth.
- Increase bending strength by giving more material at the tooth root.
- Optimize center distance to fit in compact outboard gearcases. [khkgears.co]
Crowning and lead corrections are used to control contact patterns under loaded conditions:
- Crowning: Slight convex shape along tooth width to prevent edge contact when shafts deflect.
- Lead correction: Adjustments made to accommodate housing deformation, shaft misalignment, and load tilting. [khkgears.co]
These modifications are critical in outboard gearboxes, which experience misalignment from casing deflection under propeller thrust. [parashifttech]
- Tip relief helps reduce noise and shock as teeth engage, especially under high torque at low RPM. [khkgears.co]
- Root fillet optimization lowers stress concentration, improving fatigue life in marine duty cycles. [khkgears.co]
From experience, carefully tuned tip relief can make the difference between a gearbox that "whines" and one that feels premium and quiet to the boat owner.
Tooth profile is only one part of the story; materials and treatments must support the designed geometry. [khkgears.co]
For high-performance outboard gears, manufacturers typically combine:
- High-quality alloy steels suitable for carburizing or induction hardening. [khkgears.co]
- Carburized/hardened case for wear resistance, with a tough core for impact loads. [khkgears.co]
- Ground or honed profiles to achieve controlled surface roughness and accurate tooth form. [khkgears.co]
When the tooth profile and heat treatment are designed together, we gain:
- Better resistance to pitting, scuffing, and micro-spalling.
- More stable contact patterns over the gear's service life.
- Lower running noise even after long-term use in saltwater environments. [tiecas]
From a quality and UX standpoint, our customers care that every gear they install behaves consistently. To achieve this, we rely on systematic inspection: [parashifttech]
- Profile inspection using gear measuring centers ensures tooth form matches design within microns.
- Lead and pitch inspection verify that contact patterns will be correct under load.
- Contact marking tests under simulated loading confirm how gears actually mesh in the housing. [khkgears.co]
Sharing these inspection results during customer discussions not only demonstrates trustworthiness but also directly supports E‑E‑A‑T by providing transparent, measurable proof of quality. [parashifttech]
In one outboard project, a customer reported persistent gear whine at mid-range RPM despite using high-quality oil and proper alignment. Based on our experience, we suspected a combination of inadequate tip relief and low contact ratio. [tiecas]
After reviewing the tooth profile and running a loaded contact analysis:
1. We increased tip relief carefully to soften initial engagement.
2. We adjusted profile shift to improve contact ratio without changing center distance.
3. We applied a small amount of crowning to stabilize the contact pattern under thrust loads. [khkgears.co]
The result was a noticeable reduction in noise and improved user comfort, validated both by test bench data and end-user feedback. That is how theoretical tooth profile design directly translates into better on-water experience.
At Ningbo Gill Transmission Parts Co., LTD., our focus on outboard gears and marine drivetrain components means we design tooth profiles with a clear understanding of real usage scenarios. [tiecas]
Our approach includes:
- Close collaboration with engine and boat OEMs to understand load spectra, duty cycles, and target noise levels. [tiecas]
- Use of modern gear design tools combined with physical test benches for validation. [parashifttech]
- Continuous improvement based on field data, warranty feedback, and customer reviews. [parashifttech]
This combination of calculation, testing, and real-world feedback allows us to deliver gear sets that not only meet specification sheets, but genuinely feel better to the end user on the water.
When we design gear tooth profiles, we translate engineering metrics into user experience outcomes:
- Smooth shifting: Reduced backlash variation and carefully tuned tooth entry help avoid clunks when shifting between forward, neutral, and reverse.
- Quiet cruising: Optimized contact ratio and profile modifications cut down on mid-RPM whine that fatigues users over long trips. [khkgears.co]
- Confidence at full throttle: Strong tooth roots and robust surface finish give boat owners the confidence to accelerate hard without worrying about gear damage. [tiecas]
This is exactly where gear tooth profile design, material engineering, and quality control align to create a premium marine driving experience.
| Design aspect | What it is | Impact on outboard gears |
|---|---|---|
| Tooth profile type | Involute tooth geometry and modifications (khkgears.co) | Smooth meshing, tolerance to misalignment, ease of manufacture (khkgears.co) |
| Pressure angle | Angle of force transmission at pitch circle (khkgears.co) | Balances load capacity, noise, and bearing loads (khkgears.co) |
| Contact ratio | Number of tooth pairs in contact on average (khkgears.co) | Higher ratios reduce noise and distribute load (khkgears.co) |
| Profile shift | Intentional addendum modification (khkgears.co) | Avoids undercut, increases strength, fits compact housings (khkgears.co) |
| Crowning/lead correction | Flank corrections along tooth width (khkgears.co) | Prevents edge contact, handles shaft and housing deflection (khkgears.co) |
| Tip relief | Local relief at tooth tip (khkgears.co) | Reduces impact noise, improves smoothness under load (khkgears.co) |
| Material & heat treat | Steel grade and hardening method (khkgears.co) | Wear resistance, fatigue life, and shock load tolerance (khkgears.co) |
When you are evaluating or specifying outboard gears or marine transmission parts, use this quick checklist:
1. Confirm that gears use a well-defined involute profile suitable for the required torque and speed.
2. Ask for details on profile modifications (tip relief, crowning, profile shift) used to control noise and load distribution.
3. Review material and heat treatment specs, including hardness range and case depth.
4. Request profile and lead measurement reports or sample inspection data.
5. Ask for field performance feedback or case histories from similar power ranges and applications. [parashifttech]
If you are a boat OEM, engine manufacturer, or marine gearbox designer looking to improve noise, durability, or shifting feel, a deeper look at your gear tooth profiles may unlock significant gains. [parashifttech]
At Ningbo Gill Transmission Parts Co., LTD., we specialize in outboard gears and marine drivetrain components, combining advanced gear design with rigorous inspection and real-world testing. If you would like to review your current gear designs, discuss optimization options, or develop custom outboard gear sets, reach out to our engineering team for a technical consultation and sample evaluation. [tiecas]
1. Why are involute tooth profiles preferred in marine outboard gears?
Involute profiles provide stable transmission ratios, tolerate small center distance changes, and are easier to manufacture and inspect, which is crucial for compact outboard gearcases. [khkgears.co]
2. How does tooth profile affect noise in an outboard gearbox?
Contact ratio, tip relief, and crowning all influence how smoothly teeth engage and disengage; well-optimized profiles significantly reduce whine and vibration across the RPM range. [khkgears.co]
3. What is the most important factor for gear durability in marine use?
Durability comes from a combination of correct tooth profile, material selection, heat treatment, and surface finish, all tuned to the specific torque and duty cycle of the application. [tiecas]
4. Can profile corrections fix an existing noisy outboard gearset?
In many cases, carefully applied profile and lead corrections—especially tip relief and crowning—can noticeably reduce noise, provided the basic geometry and materials are suitable. [tiecas]
5. How does Ningbo Gill ensure consistent gear tooth quality?
We use precision gear measuring equipment, controlled heat treatment, and contact pattern validation, supported by continuous feedback from OEMs and field data to refine our designs. [parashifttech]
